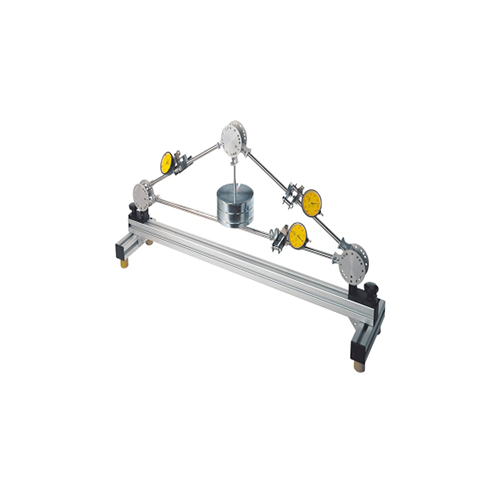

Forces In A Simple Bar Structure Didactic Equipment Vocational Education Equipment Mechanical Training Equipment

Item No.: FL 111
Forces In A Simple Bar Structure Didactic Equipment Vocational Education Equipment Mechanical Training Equipment
Description
FL 111 Forces In A Simple Bar Structure Didactic Equipment Vocational Education Equipment Mechanical Training Equipment

Resolution of forces in a simple bar structure
Features
- resolution of forces in simple bar structures
Learning objectives/experiments
- measurement of bar forces
- calculation of bar forces by the method of joints
- comparison: measuring result - calculation - graphical method
Specification
[1] resolution of forces in a single plane, statically determinate system
[2] 3 node disks, 2 of which serving as supports
[3] 3 bars, each fitted with a leaf spring element and dial gauge


[4] 2 fixed bar lengths, 1 variable bar length
[5] 5 different angles adjustable between bars
[6] storage system to house the components
Technical data
Bars
- fixed bar: L=440mm
- adjustable bar: L=440, 622, 762mm
Angle between bars
- 60°-60°-60°/45°-90°-45°
- 30°-120°-30°/30°-30°-120°
Dial gauge
- measuring range: 0...10mm
- graduation: 0,01mm
Weights
- 1x 1N (hanger)
- 1x 10N
- 2x 20N
Leaf spring element
- force measuring range: 0...50N
LxWxH: 900x200x600mm
Weight: approx. 15kg
LxWxH: 1170x480x178mm (storage system)
